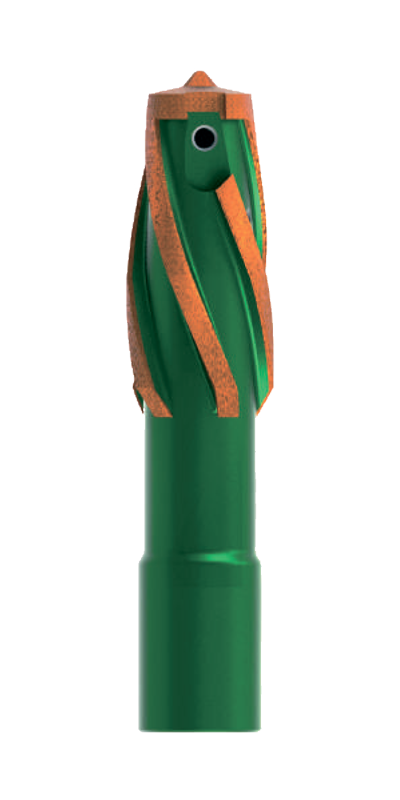

Starting mill FSO

Carbide composite reinforced mill, designed to cut the casing exit in sidetracking operations.

The starting mill supplied with a watermelon mill and is included in the sidetracking tool kit. In manufacturing of starting mills with index «U», larger carbide fractions are used, thus increasing the aggressiveness and wear resistance.

Nominal size Mill outer diameter, mm (D2 mm) Mill body length, mm (+-2mm) Thread type Casing size, mm
FSO-116 116 215 З-86 (NC-31 (2 7/8 IF)*) 140
FSO-116 У
FSO-124 124 146
FSO-124 У
FSO-140 140 168
FSO-140 У
FSO-142,9 142,9
FSO-142,9 У
FSO-144 144
FSO-144 У 178
FSO-150 150
FSO-150 У
FSO-215 215 750 З-133 (NC-50 (4 1/2 IF)*) 245
