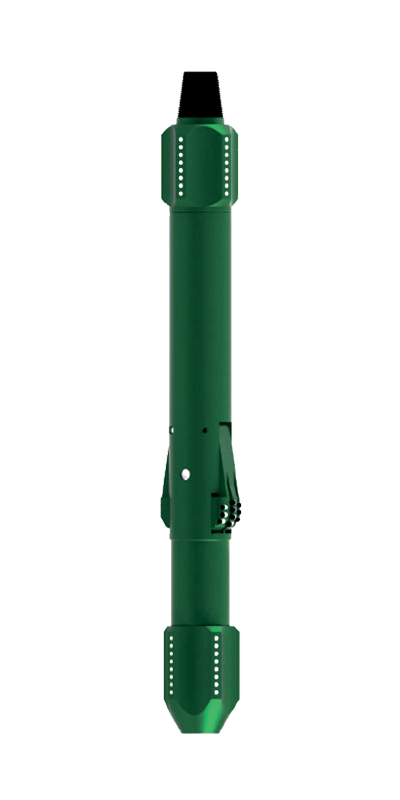

Expanding device URG
Hydraulic expanding device is designed to increase wellbore diameter. Expansion is performed in open hole interval.
URG is a cutting tool with sliding blades, working under the influence of differential pressure of fluid while rotating the drill string. The blades are reinforced with carbide and PDC-cutters.
Nominal size | Diameter bycentrators/on the body, mm | Body length, mm | Thread type | Casing size, mm |
URG-114/220 | 122/114 | 1016 | З-76 (2 7/8 Reg) | 146 |
URG-132/180 | 142,9/132 | 1031 | 3-88 (3 1/2 Reg) | 168 |
